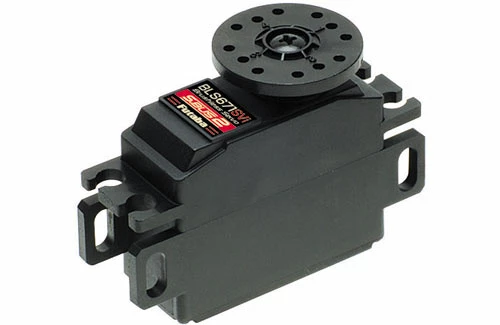

Developed to provide the ultimate steering servo for 1/12 cars and similar applications that require a compact, powerful and fast responding servo, the BLS671SVI can be used with voltages of up to 7.4v, where it provides no less than 8.3Kg.cm of torque and a 0.10 sec transit speed. It is also compatible with standard receivers as well as those outputting Futaba S-Bus or S-Bus2, and is of course fully programmable. Being brushless it offers up to five times the operational life of a non-brushless servo, ensuring long term reliability and performance.

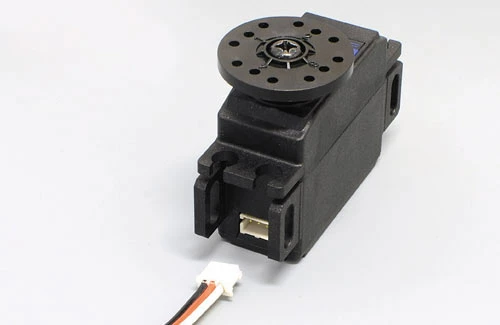

This servo is designed to use futaba’s innovative I-Connector leads.
This servo is compatible with Futaba SR ‘Super Respsonse’ systems.
| Specifications | |
|---|---|
| Weight | 28g |
| Bearings | 2x BB |
| Dimensions | 33 x 15 x 27.1mm |
| Gear Type | Metal |
| Speed | 0.12 sec/60 deg @ 6v |
| Speed | 0.11 sec/60 deg @ 6.6v |
| Speed | 0.10 sec/60 deg @ 7.4v |
| Torque | 6.7 kg/cm @ 6v |
| Torque | 7.4 kg/cm @ 6.6v |
| Torque | 8.3 kg/cm @ 7.4v |
| Voltage | 6 – 7.4v |
Spec
- Brand: Futaba
- Part No: P-SBL671SVI
- Barcode: 4513886025631
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
