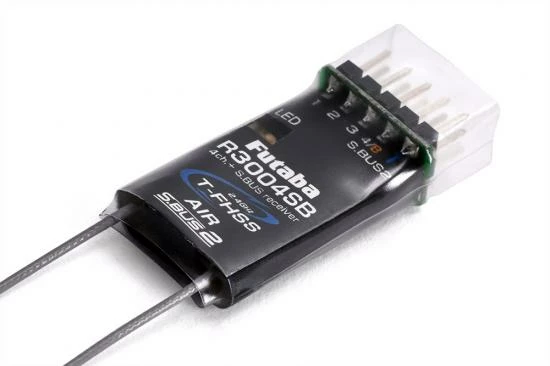

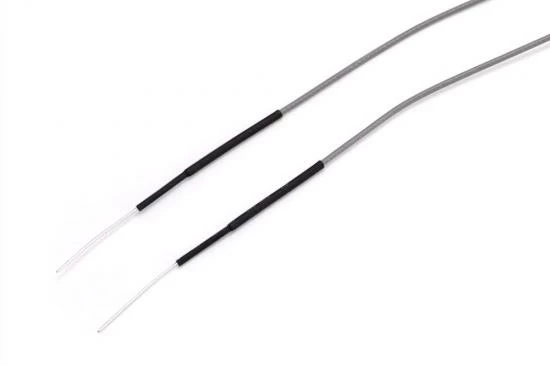

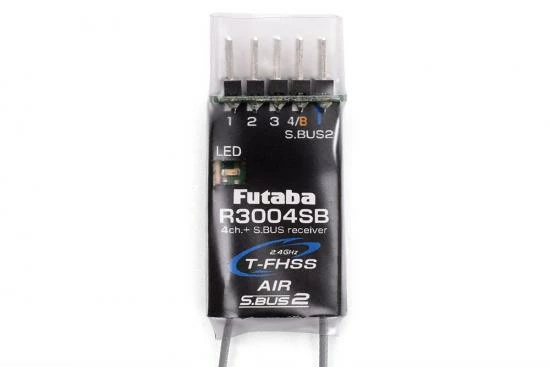

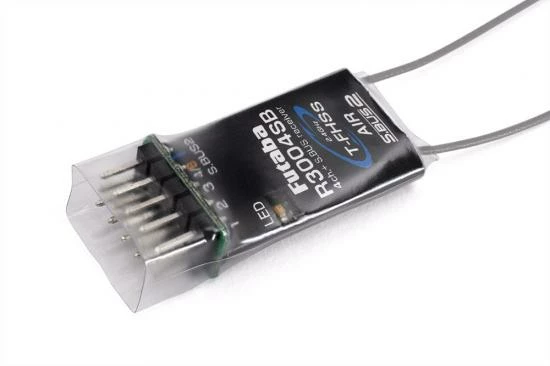

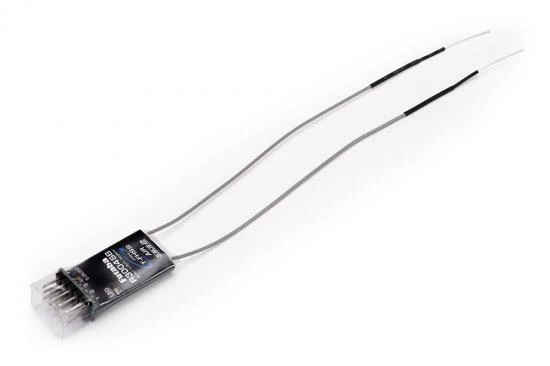

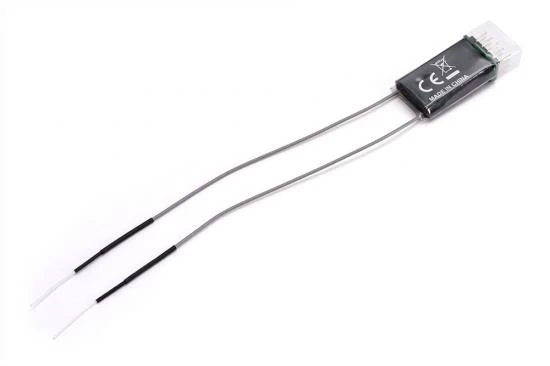

The Futaba R3004SB is a slim 4-channel receiver that is ideally suited to smaller models, as well as gliders/electric gliders that still require full range transmission. Futaba ditched bulky moulded cases and opted for lightweight heat shrink instead, this provides protection for almost any use but helps keep the weight down to just under 5 grams. The electronics are uncompromised, so the R3004SB has full telemetry features and full range transmission. It’s slim and compact format makes it ideal for almost any application, whilst a pair of coaxial aerials provide solid stable reception with their length allowing them to be positioned at 90 degrees from each other, to give the maximum possible range.

• 2.4GHz T-FHSS Air system
• 4 Channels + S-BUS
• S-BUS2 Port for telemetry
• Diversity Dual Antenna
• Ultra small design for smaller models
• Heat shrink enclosure to reduce weight

Specifications
Modulation	T-FHSS Air
Weight	4.8g (0.17 oz)
Voltage	4.8 – 7.4V
Channels	4 + S.Bus2 Port
Dimensions	18 x 41.4 x 9.9mm (0.71 x 1.63 x 0.39″)
Frequency	2.4GHz
Aerial Length	2x 150mm

Spec

• Brand: Futaba
• Part No: P-R3004SB
• Barcode: 4513886030819
• Frequency: 2.4Ghz
• Channels: 4 Channel
